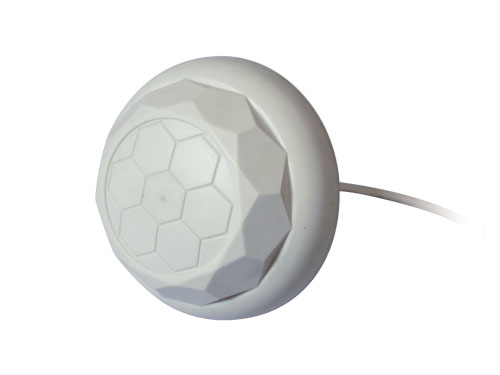

5725-5850MHz WLAN Omnidirectional Antenna VSWR≤1.5 with N Jack Connector XMR-WL024
Category: WLAN, Wifi Antenna
Model: XMR-WL024
Inquiry Now

Share:

Description


 ELECTRICAL
  Frequency Range5725-5850-MHz
  Bandwidth100-MHz
  Gain5-dBi
  BeamwidthH:360° E:65°
  VSWR≤1.5
  Polarization Vertical
  Max power100 -W
  Nominal Impedance50 -Ω





 MECHANICAL
  Connector­­­  N female or customized
    Antenna Dimension         Φ120×45 -mm
  Weight100-g
  Color White
  Rated Wind Velocity60-m/s
  Working Temperature   -40~+70℃
