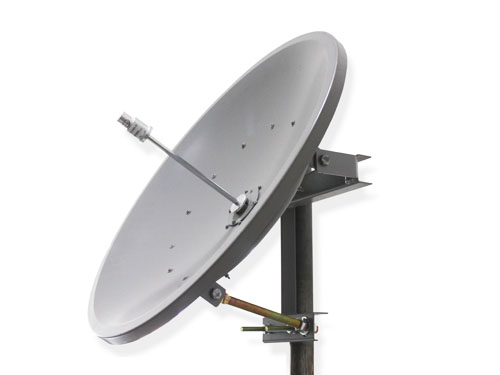

High Quality WLAN Directional Antenna VSWR≤1.5 with Customized RF Connector XMR-WL023
Category: WLAN, Wifi Antenna
Model: XMR-WL023
Inquiry Now

Share:

Description

ELECTRICAL
  Frequency Range5725-5850-MHz
  Bandwidth125-MHz
  Gain29-dBi
  BeamwidthH:6° E:6°
 F/B Ratio≥35-dB
  VSWR≤1.5
  PolarizationVertical or Horizontal
  Max power100 -W
  Nominal Impedance50 -Ω


 MECHANICAL
  Connector­­­  N female or customized
    Antenna Dimension         Ф0.6-M
  Weight5-Kg
  Rated Wind Velocity60-m/s
  Diameter of the PoleΦ50~75
