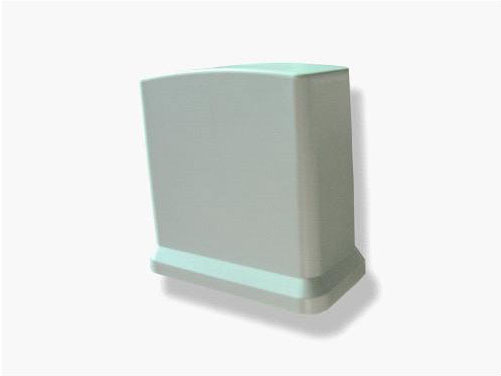

2400-2500MHz WLAN Directional Antenna VSWR≤1.5 with Customized RF Cable XMR-WL045
Category: WLAN, Wifi Antenna
Model: XMR-WL045
Inquiry Now

Share:

Description

ELECTRICAL
 Frequency Range2400-2500-MHz
  Bandwidth100-MHz
Gain12-dBi
F/B ratio≥15-dB
VSWR≤1.5
  Polarization  Horizontal or Vertical
  Max power100 -W
 Nominal Impedance50 -Ω


 MECHANICAL
 Connector  N female or customized
    Antenna Dimension          166X160X87-mm
  Weight200-g
  Rated Wind Velocity60-m/s
 Mounting KitsIncluding
 Mounting Mast Diameter       Ф40-50mm
