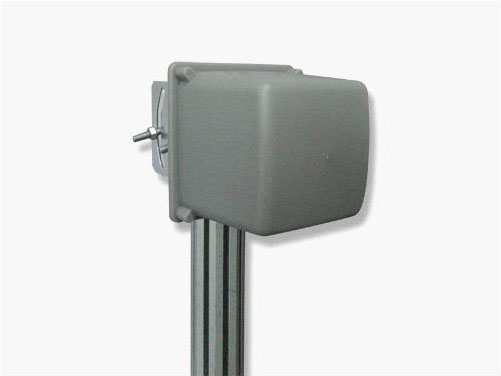

2400-2500MHz WLAN Directional Antenna VSWR≤2 with N Jack Connector XMR-WL043
Category: WLAN, Wifi Antenna
Model: XMR-WL043
Inquiry Now

Share:

Description

 ELECTRICAL
Frequency Range2400-2500-MHz
Bandwidth100-MHz
Gain12-dBi
 BeamwidthH: 40- °E: 50- °
 F/B ratio≥16-dB
VSWR≤2
 PolarizationHorizontal or Vertical
 Max power100 -W
Nominal Impedance50 -Ω


MECHANICAL
ConnectorN female or customized
Dimension105×105×110-mm
Weight0.52-KG
Rated Wind Velocity60-m/s
Mounting KitsL bracket & U bolts
Mounting Mast Diameter       Ф40-50mm
