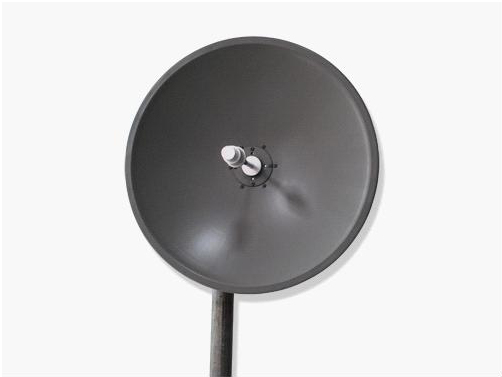

5725-5850MHz Wifi Directional Antenna VSWR≤1.5 with N Female Connector RF Cable XMR-WL031
Category: WLAN, Wifi Antenna
Model: XMR-WL031
Inquiry Now

Share:

Description


ELECTRICAL
Frequency Range5725-5850-MHz
Bandwidth125-MHz
 Gain24-dBi
 BeamwidthH:9° E:9°
F/B Ratio≥30-dB
VSWR≤1.5
PolarizationVertical or Horizontal
Max power100 -W
Nominal Impedance50 -Ω




MECHANICAL
Connector­­­ N female or customized
Antenna Dimension         Ф0.4-M
Weight3-Kg
Rated Wind Velocity60-m/s
 Diameter of the Poleφ40~50
