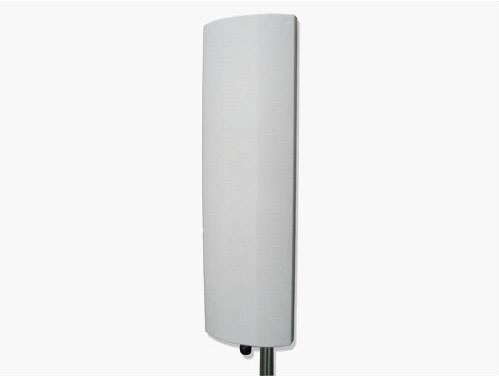

High Gain WLAN Omnidirectional Antenna VSWR≤1.5 with Customized RF Connector XMR-WL047
Category: WLAN, Wifi Antenna
Model: XMR-WL047
Inquiry Now

Share:

Description

ELECTRICAL
Frequency Range2400-2500-MHz
Bandwidth100-MHz
Gain15-dBi
BeamwidthH:60° E:15°
 F/B ratio≥25-dB
  VSWR≤1.5
 PolarizationHorizontal or Vertical
Max power100 -W
Nominal Impedance50 -Ω

MECHANICAL
ConnectorN female or customized
 Dimension454×137×30-mm
 Weight2-KG
 Mounting Mast DiameterΦ40 to Φ65-mm
Operating Temperature-40 to +60-℃
Relative Humidity5% to 95%
Rated Wind Velocity60-m/s
