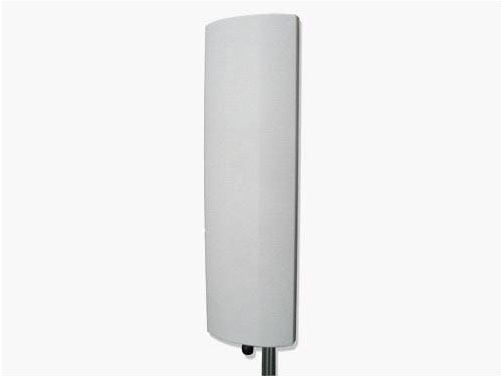

High Gain 2400-2500MHz WLAN Omnidirectional Antenna VSWR≤1.5 with N Female Connector XMR-WL021
Category: WLAN, Wifi Antenna
Model: XMR-WL021
Inquiry Now

Share:

Description

 ELECTRICAL
Frequency Range2400-2500-MHz
Bandwidth100-MHz
Gain13.5-dBi
BeamwidthH:120° E:15°
F/B ratio≥25-dB
 VSWR≤1.5
 Polarization Horizontal or Vertical
Max power100 -W
Nominal Impedance50 -Ω



MECHANICAL
 ConnectorN female or customized
Dimension454×137×30-mm
Weight2-KG
Mounting Mast DiameterΦ40 to Φ65-mm
Operating Temperature-40 to +60-℃
 Relative Humidity5% to 95%
Rated Wind Velocity60-m/s
