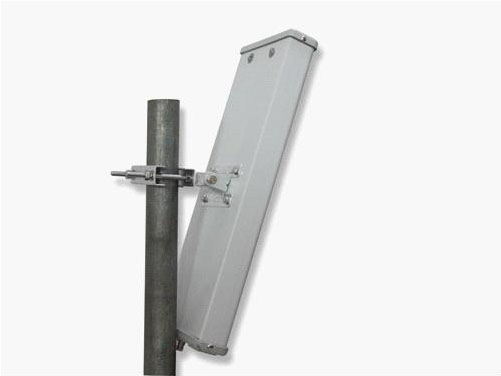

High Gain WLAN Directional Antenna VSWR≤1.5 with N Jack or Customized Connector XMR-WL028
Category: WLAN, Wifi Antenna
Model: XMR-WL028
Inquiry Now

Share:

Description

ELECTRICAL
Frequency Range5150-5850-MHz
Bandwidth700-MHz
Gain16-dBi
BeamwidthH: 120- °E: 15- °
F/B ratio≥25-dB
VSWR≤1.5
Polarization Horizontal or Vertical
Max power100 -W
Nominal Impedance50 -Ω


MECHANICAL
Connector N female or customized
Dimension470×175×60-mm
Weight1.8-KG
 Rated Wind Velocity60-m/s
Mounting Mast Diameter       Ф40-50mm
