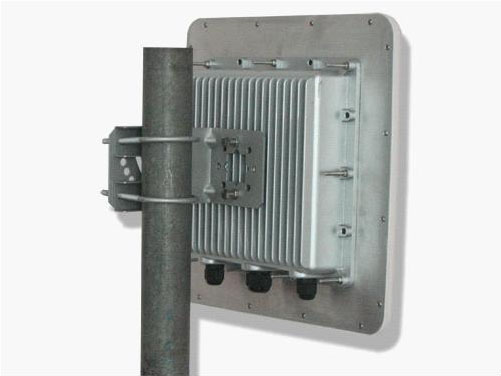

5150-5850MHz WLAN Directional Antenna Gain 23dBi with Customized RF Connector XMR-WL030
Category: WLAN, Wifi Antenna
Model: XMR-WL030
Inquiry Now

Share:

Description

ELECTRICAL
Frequency Range5150-5850-MHz
Bandwidth700-MHz
Gain23-dBi
BeamwidthH: 11- °E: 11- °
VSWR≤1.5
PolarizationHorizontal or Vertical
Max power100 -W
Nominal Impedance50 -Ω

MECHANICAL
ConnectorN female or customized
Dimension of Enclosure190x190x40-mm
Antenna Dimension          306x306x74-mm
 Dimension of Inner Box330×335×110-mm
Weight2.89-Kg
 ColorWhite
Rated Wind Velocity60-m/s
Mounting Kits L bracket & U bolts
 Mounting Mast Diameter       Ф40-50mm
