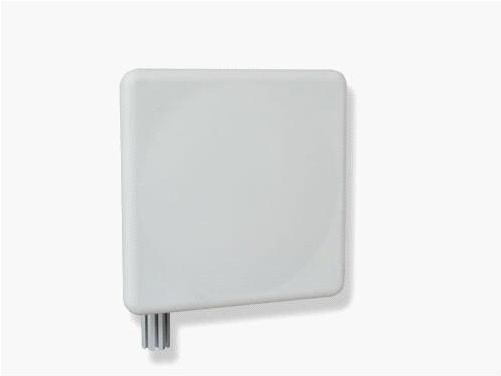

5150-5850MHz Wifi Directional Antenna Gain 23dBi with N Female Connector­­­ XMR-WL032
Category: WLAN, Wifi Antenna
Model: XMR-WL032
Inquiry Now

Share:

Description


 ELECTRICAL
Frequency Range5150-5850-MHz
Bandwidth700-MHz
Gain23-dBi
BeamwidthH: 11- °E: 11- °
VSWR≤1.5
Polarization Horizontal or Vertical
Max power100 -W
Nominal Impedance50 -Ω


MECHANICAL
Connector­­­N female
Antenna Dimension         306x306x25-mm
Dimension of Inner Box330×335×110-mm
Weight2-Kg
ColorWhite
Rated Wind Velocity60-m/s
Mounting KitsL bracket & U bolts
Mounting Mast Diameter      Ф40-50mm
