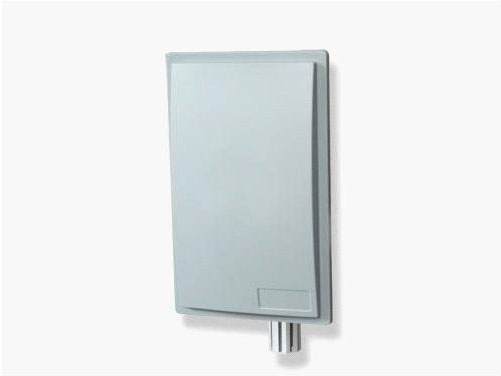

5150-5850MHz Wifi Directional Antenna Gain 18dBi with Customized RF Connector XMR-WL027
Category: WLAN, Wifi Antenna
Model: XMR-WL027
Inquiry Now

Share:

Description

ELECTRICAL
Frequency Range5150-5850-MHz
Bandwidth700-MHz
Gain18-dBi
 BeamwidthH: 20- °E: 10- °
 F/B ratio≥25-dB
VSWR≤1.5
Polarization  Horizontal or Vertical
Max power100 -W
 Nominal Impedance50 -Ω


MECHANICAL
ConnectorN female or customized
Dimension320×200×100-mm
Weight2-KG
Rated Wind Velocity60-m/s
 Mounting KitsL bracket & U bolts
Mounting Mast Diameter       Ф40-50mm
