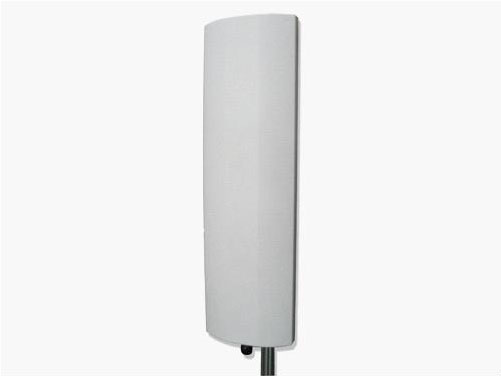

5150-5850MHz Wifi Omnidirectional Antenna Gain 18dBi with N Jack or Customized Connector XMR-WL016
Category: WLAN, Wifi Antenna
Model: XMR-WL016
Inquiry Now

Share:

Description

ELECTRICAL
 Frequency Range5150-5850-MHz
Bandwidth700-MHz
 Gain18-dBi
 BeamwidthH:60° E:7°
  F/B ratio≥25-dB
  VSWR≤1.7
  Polarization  Horizontal or Vertical
  Max power100 -W
 Nominal Impedance50 -Ω


MECHANICAL
 Connector N female or customized
 Dimension454×137×30-mm
  Weight2-KG
  Mounting Mast DiameterΦ40 to Φ65-mm
Operating Temperature-40 to +60-℃
Relative Humidity5% to 95%
 Rated Wind Velocity60-m/s
