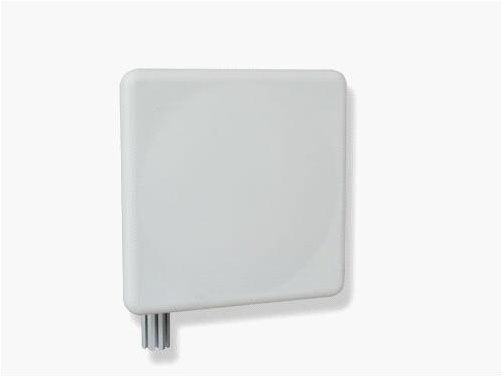

2400-2500MHz Wifi Directional Antenna Gain 18dBi with Customized RF Connector XMR-WL034
Category: WLAN, Wifi Antenna
Model: XMR-WL034
Inquiry Now

Share:

Description

ELECTRICAL
Frequency Range2400-2500-MHz
Bandwidth100-MHz
Gain18-dBi
BeamwidthH: 20- °E: 20- °
VSWR≤1.5
Polarization Horizontal or Vertical
 Max power100 -W
Nominal Impedance50 -Ω


MECHANICAL
ConnectorN female or customized
Antenna Dimension          306x306x25-mm
Dimension of Inner Box330×335×110-mm
Weight2-Kg
Rated Wind Velocity60-m/s
 Mounting KitsL bracket & U bolts
Mounting Mast Diameter       Ф40-50mm
