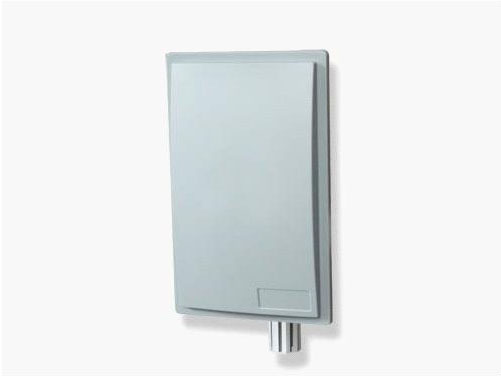

High Quality Wifi Directional Antenna Gain 15dBi with Customized RF Connector XMR-WL044
Category: WLAN, Wifi Antenna
Model: XMR-WL044
Inquiry Now

Share:

Description

ELECTRICAL
Frequency Range2400-2500-MHz
Bandwidth100-MHz
Gain15-dBi
 BeamwidthH: 25- °E: 30- °
 F/B ratio≥25-dB
 VSWR≤1.8
Polarization Horizontal or Vertical
Max power100 -W
Nominal Impedance50 -Ω

MECHANICAL
ConnectorN female or customized
Dimension320×200×100-mm
Weight2-KG
Rated Wind Velocity60-m/s
Mounting KitsL bracket & U bolts
Mounting Mast Diameter       Ф40-50mm
