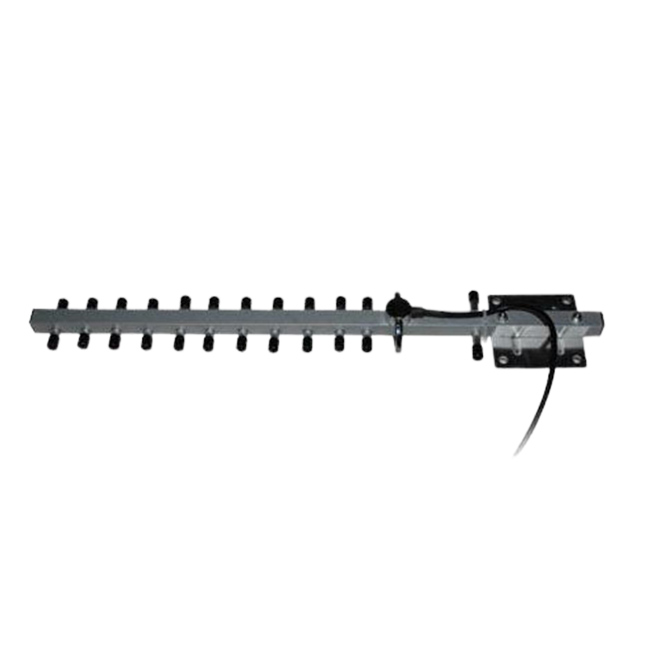

2400-2500MHz WLAN Directional Antenna VSWR≤1.5 with Customized RF Cable XMR-WL049
Category: WLAN, Wifi Antenna
Model: XMR-WL049
Inquiry Now

Share:

Description

ELECTRICAL
Frequency Range2400-2500-MHz
Bandwidth100-MHz
Gain13-dBi
BeamwidthH: 29- °E: 25- °
F/B ratio≥14-dB
VSWR≤1.5
PolarizationHorizontal or Vertical
Max power100 -W
Nominal Impedance50 -Ω


MECHANICAL
Connector N female or customized
Dimension0.7-M
Weight0.8-KG
Rated Wind Velocity60-m/s
 Mounting Kits U bolts
 Mounting Mast Diameter       ≤49mm
