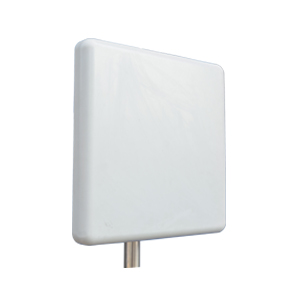

2400MHz MIMO Antennas VSWR≤1.5 with N Female Connector XMR-AC0057
Category: MIMO Antennas
Model: XMR-AC0057
Inquiry Now

Share:

Description

Frequency Range   2400-2483MHz
Gain   3×15dBi
VSWR ≤1.5
Polarization   2×V and 1×H
Horizontal Beam Width 65°
Vertical Beam Width 18°
F/B Ratio   >25dB
Impedance 50Ω
Maximum Input Power 100W
Connector N×3 female
Operating Temperature -40℃ to+60℃
Mechanical  Specifications
Antenna Dimension   395×370×35mm
Weight 2Kg
Mounting Mast Diameter Φ30~Φ50mm
Rated Wind Velocity   241Km/h
