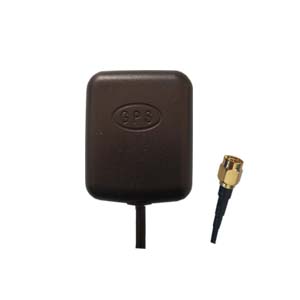

GPS Antenna LNA Gain 32dB Typical with SMB Male RG174 XMR-AC0124

GPS Antenna

Category: GPS Antenna

Model: XMR-AC0124

Inquiry Now

Description

Frequency	1575MHZ/1602MHz
Center Frequency	1590MHz
V.S.W.R	1.5:1
Band Width	50 MHz Min.at-10dB
Impendence	50 ohm
Peak Gain	5dBic Min/1575MHz 4dBic Min/1602~1616MHz
Gain Coverage	≥-4dBic at-90°~90°(over75%volume)
Power Handling	1 watt
Polarization	RHCP
(ii)LNA
LNA Gain(Without cable)	32dB Typical
Noise Figure	1.5dB
V.S.W.R	<2.0
DC Voltage	2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current	11mA Max
(iii)Mechanical
Weight	<110gram
Size	44×38×13mm
Cable	RG174 3meters or other
Connector	SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX or other
Mounting	Magnetic base
Housing	Black
(iv)Environmental
Working Temp	-40℃~+85℃
Storage Temp	-45℃~+100℃
Vibration	Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity	Humidity95%~100%RH
Weatherproof	100%Waterproof
