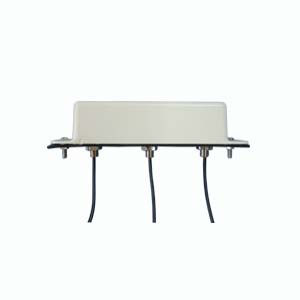

Factory Direct Selling GPS Antenna 170×37mm with SMA Male Connector XMR-AC0117
Category: GPS Antenna
Model: XMR-AC0117
Inquiry Now

Share:

Description

Center Frequency1575.42MHZ+3 MHz
Band Width±5 MHz
V.S.W.R1.5:1
Polarization TypeRHCP
Impedance50 ohm
LNA Gain28±2dB Typical
Noice Figure1.5dB
DC Yolt age2.2-5.0V
DC current5-15mA
GSH Part:
Frequency range824-894MHz, 880MHz-960MHz,1710MHz~1990MHz
VSWR2.0:1
Gain2dBi
WIFI Part:
Frequency range2400-2500MHz
VSWR2.0:1
Gain3dB
Mechanical  Specification
HousingBlack
CableRG174
Length3 M
Connector3×SMA Male
Working Temp-40℃+85℃
Humidity55%-75%RH
WaterproofIP67
Size170×37 mm
Weight260g
