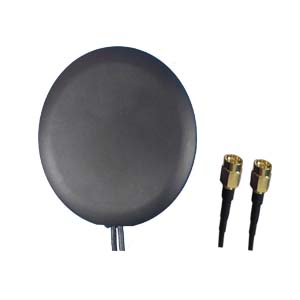

1575.42MHZ GPS Antenna RG174 with SMA Male Connector XMR-AC0115
Category: GPS Antenna
Model: XMR-AC0115
Inquiry Now

Share:

Description

Center Frequency1575.42MHZ+3 MHz
Band Width±5 MHz
V.S.W.R1.5:1
Polarization TypeRHCP
Impedance50 ohm
LNA Gain30dB Typical
Noise Figure1.5dB
DC Yolt age2.2-5.0V
DC current5-15mA
Frequency range824-894MHz/
880MHz~960MHZ,1710MHz~1990MHz
VSWR2.0:1
Gain2dBi
HousingBlack
CableRG174
Length3 M
ConnectorSMA   Male
Working Temp-40℃~+85℃
Humidity55%-75%RH
WaterproofIP67
Mechanical  Specification
Sizeφ80×14 mm
Weight230g
