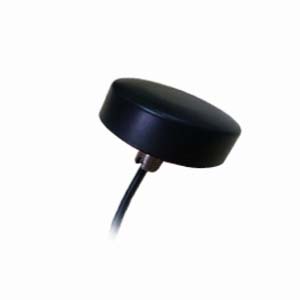

1575.42MHZ GPS Antenna with SMA Male Connector RG174 XMR-AC0114
Category: GPS Antenna
Model: XMR-AC0114
Inquiry Now

Share:

Description

Center Frequency1575.42MHZ±3 MHz
Band Width土5 MHz
V.S,W.R  1.5:1
Polarization Type  RHCP
Impedance50 ohm
LNA Gain  28±2 dB Typical
Noise Figure1.5dB
DC Volt age2.2-5.0V
DC current5-15mA
HousingBlack
CableRG174
Length3 M
ConnectorSMA Male
Working Temp-40℃~+85℃
Humidity55%-75%RH
WaterproofIP67
Mechanical  Specification
Sizφ47×14mm
Weight60g
