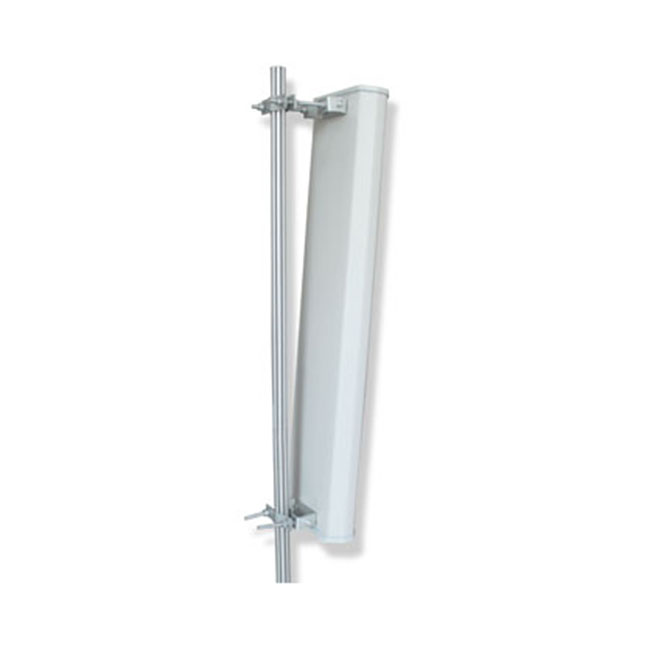

824-896MHz Directional Antennas VSWR≤1.5 with Customized Coaxial Connector XMR-PV004
Category: Base Station Antennas
Model: XMR-PV004
Inquiry Now

Share:

Description

ELECTRICAL
ModelXMR-PV004
Frequency Range824-896 MHz
Bandwidth72 MHz
Gain16 dBi
BeamwidthH:65° E:12°
 F/B ratio≥25 dB
VSWR≤1.5
 PolarizationHorizontal or Vertical
Max power100 W
Nominal Impedance50 Ω
Lighting ProtectionDC Ground


MECHANICAL
Connector­­­N female or customized
Connector PositionBottom
Radome MaterialUPVC
Radome ColorGrey
Dimension1600x285x135 mm
 Weight15 KG
Rated Wind Velocity60 m/s
Work Temperature-40~60 ℃
 Pole DiameterФ50~115 mm
